¶ 1.1 Introduction

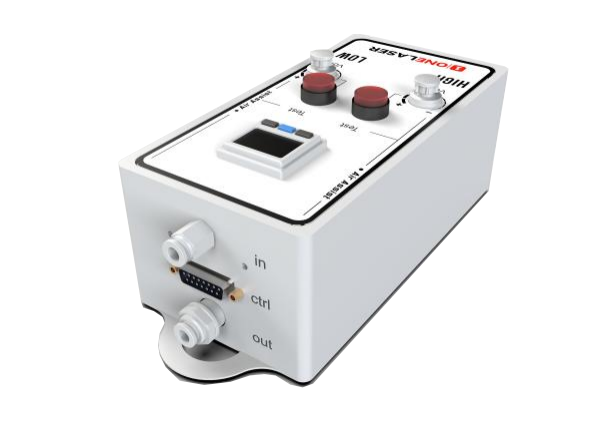

The Air Assist Control is specifically designed for the ONELASER X / Hydra series. It provides enhanced air assist pressure control, enabling the machine to:
- Precisely control high/low air pressure by design layer, significantly enhancing cutting and engraving performance on diverse materials.
- Offer visual air pressure display for more intuitive operation.
- Facilitate convenient adjustment of high/low pressure settings to meet diverse processing needs.
¶ 1.2 Specifications
|
Name |
Parameter |
|
Dimensions (L×W×H) |
230×100×75 mm |
|
Weight |
Approx. 2.5 kg |
|
Gas Source Requirement |
Non-corrosive and non-flammable gas |
|
Max Input Pressure |
1.05 MPa / 152.28 psi |
|
Min Input Pressure |
0.5 MPa / 72.52 psi |
|
Operating Pressure Range |
0-0.7 MPa / 0-101.52 psi |
|
Operating Ambient Temp. |
±3%FS (0-50℃) |
|
Operating Ambient Humid. |
35%-85% RH |
|
Inlet/Outlet Port Size |
Ø 6 mm air hose |
* Due to pressure reduction as air enters the system, a 0.6 MPa supply may register as only 0.5 MPa on the digital pressure gauge. This pressure drop is considered normal if it falls within the expected range.
