¶ How to Connect an External Blower
How to Connect External Blower explains how to safely connect an external air blower to a laser machine for improved ventilation and cutting performance. This guide covers preparation, required tools, and step-by-step installation to ensure proper airflow and reliable operation.
¶ 1. Preparation
¶ ① Consumable preparation
One Laser X model device ×1
M2 hexagon wrench
¶ ② Debug software
None
¶ 2. Operation step

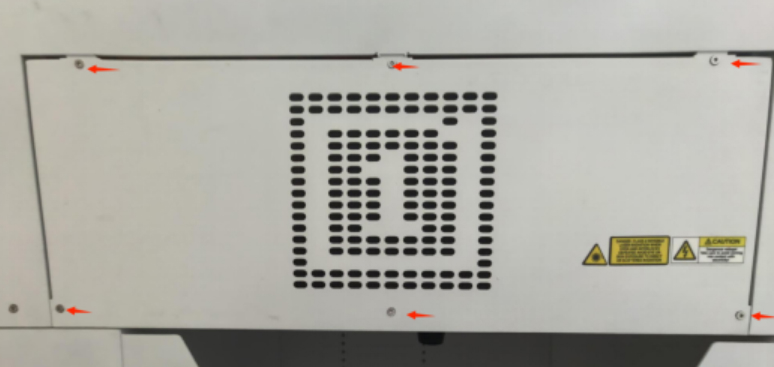

① Use an M2 hexagon wrench to loosen the six screws on the right side panel and remove the side panel.

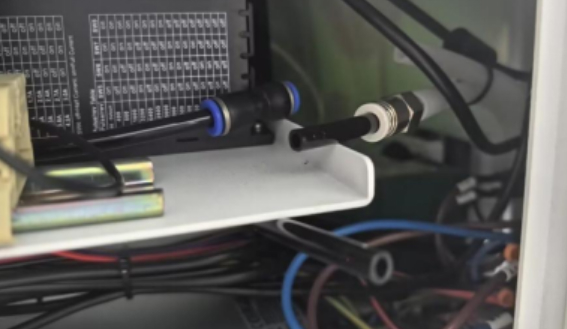

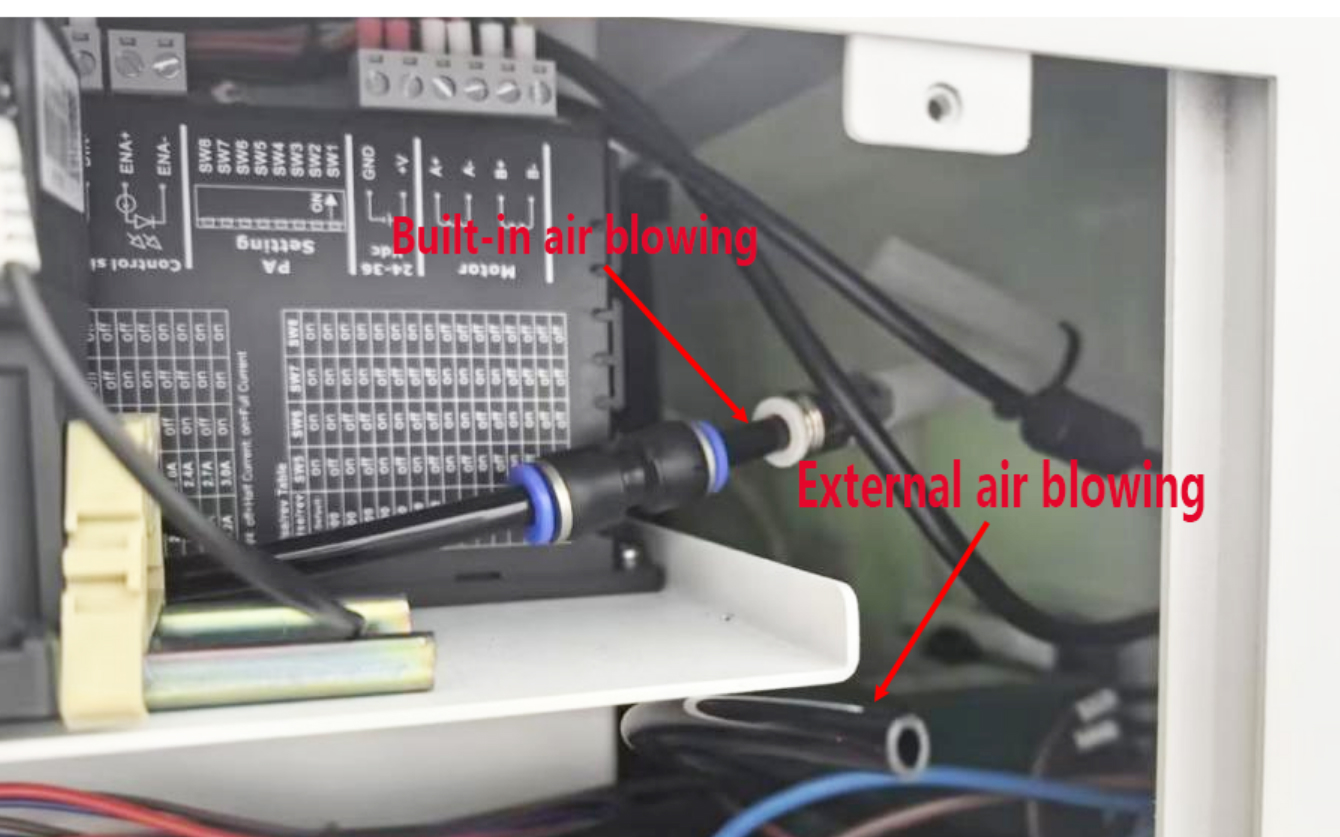

② Press the blue air valve to draw out the built-in air.

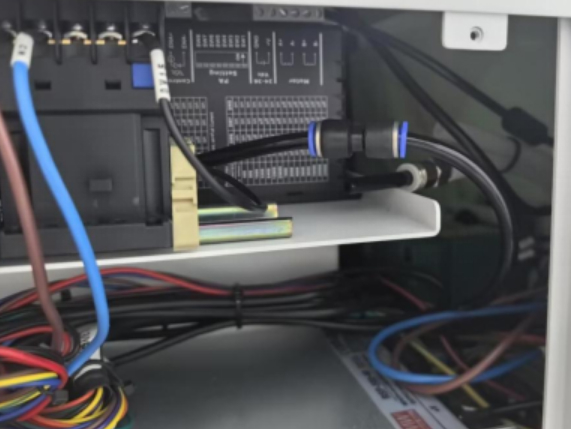

③ Insert the external air tube into the blue air valve nozzle.

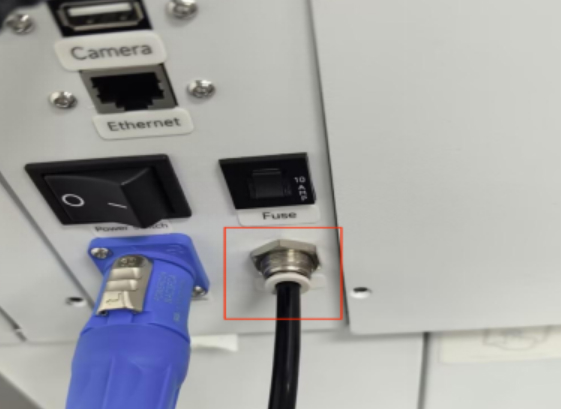

④ Insert the external air pipe into the air nozzle valve and turn on the external air compressor.
