¶ Failure to Home or XY Axis Overspeed after Rotary Use (X Series)
¶ Problem Description
After switching from the rotary axis back to regular cutting mode, the machine cannot properly reset, the X and Y axes move at excessive speed, and the head hits the limits without stopping.
¶ Solution
- Turn the Rotary Switch ON on the machine and power on the machine. Wait for approximately one minute until the main page appears on the control panel.

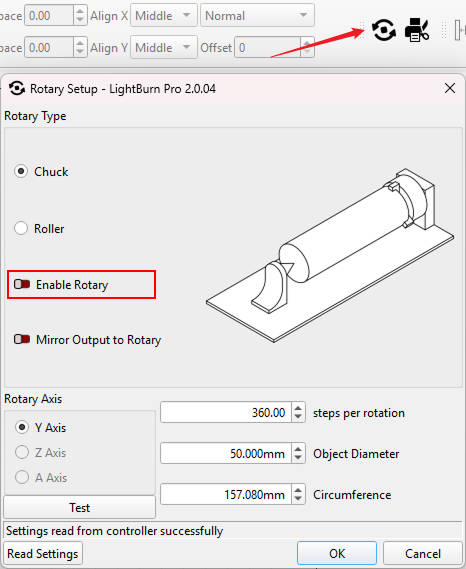

- Open LightBurn (or your laser software) and connect to the machine. Open the Rotary Setup window and disable the "Enable Rotary" option.
- Turn the Rotary Switch OFF on the machine.
- Finally, press the "Reset" button on the control panel.
The machine should now be able to reset and return to normal cutting operation.
Important Reminder:
If these steps do not resolve the issue, please click this link to submit a support ticket: https://zohodesk.1laser.com/portal/en/newticket. A technician will then be able to conduct a more in-depth diagnosis and resolve your problem.
