¶ How to connect the Air Purifier for X Series Laser Machine
Learn how to properly connect and set up the Air Purifier for your X Series machine, including installation, power connection, and airflow adjustment for optimal performance.
¶ 1. Preparation
Consumable preparation:
- One Laser X model device x 1
- Air Purifier x 1
- Phillips screwdriver x 1
Debug software: None
¶ 2. Operation step

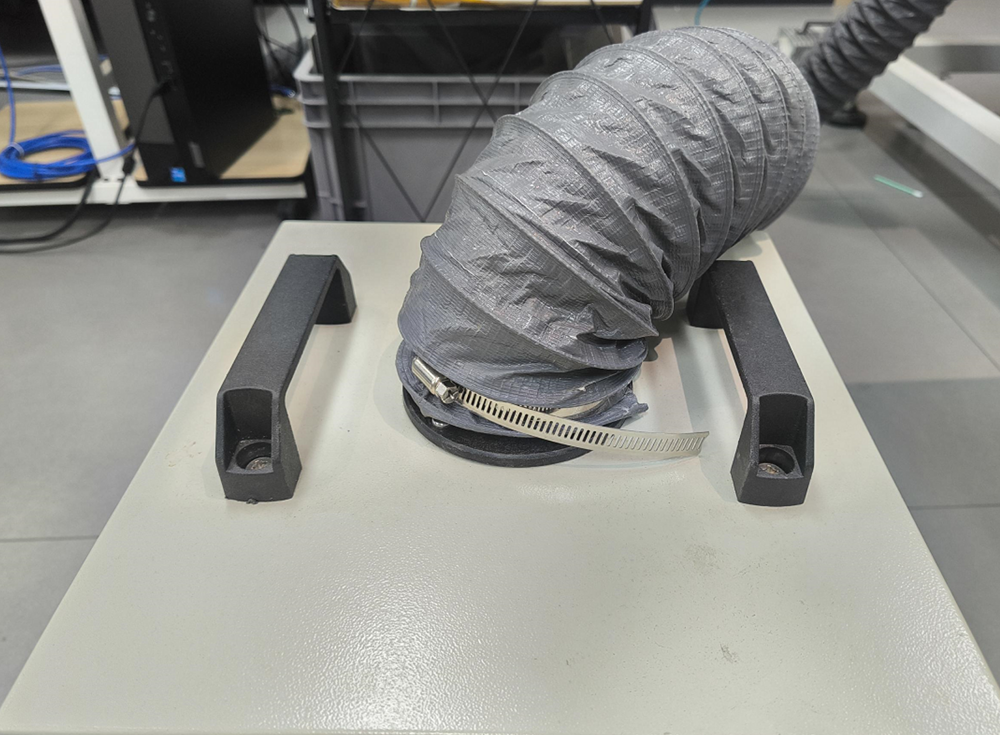

Step 1. Install the equipment air duct to the air inlet of the purifier
Use a cross screwdriver to tighten the hose clamp.

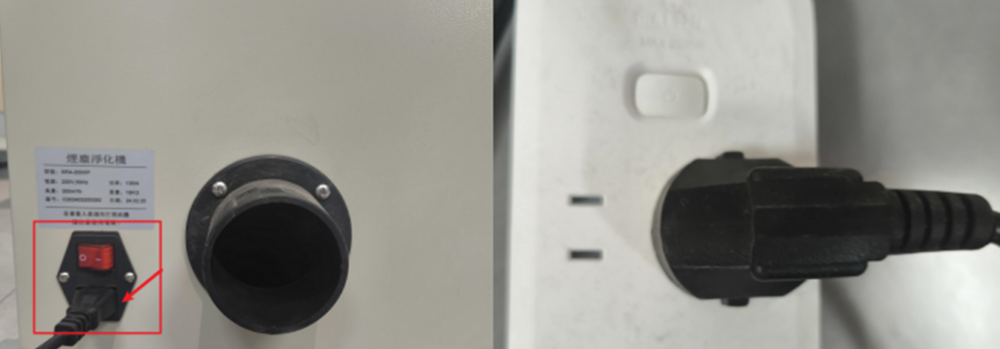

Step 2. Connect the purifier to the power supply

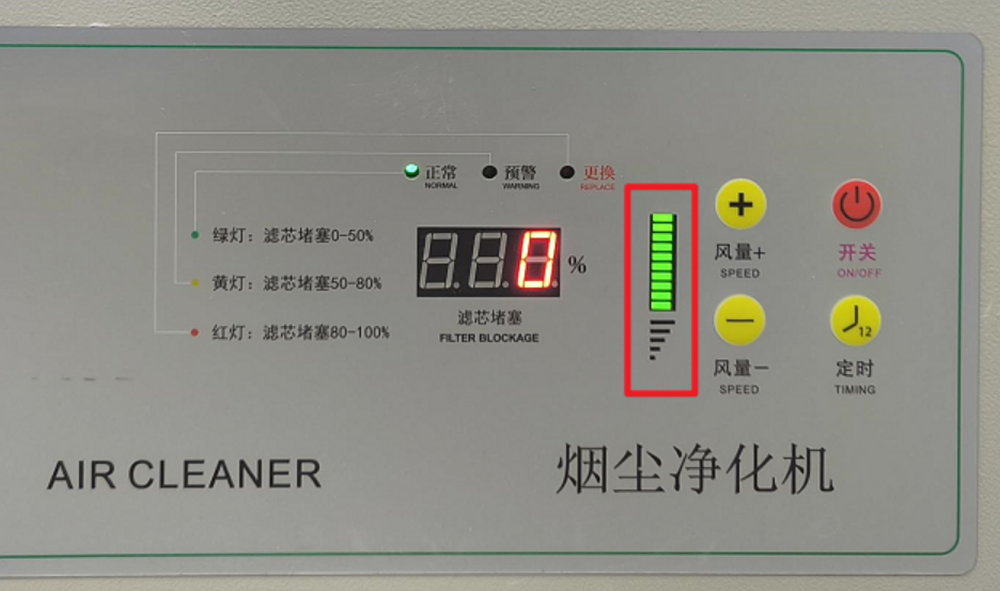

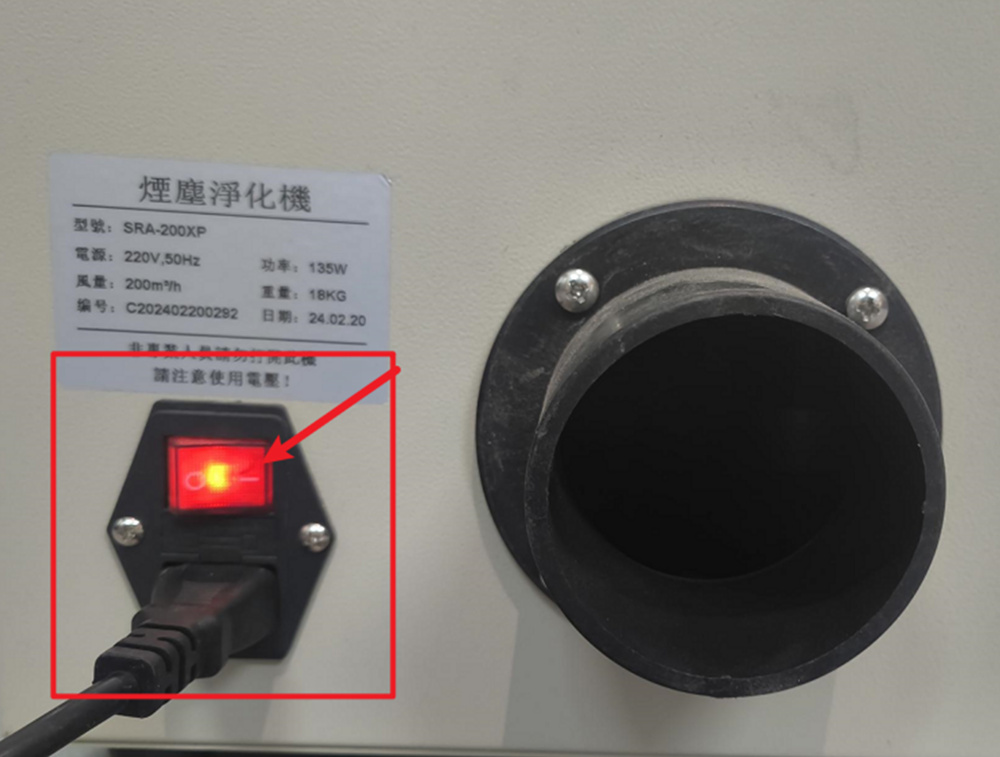

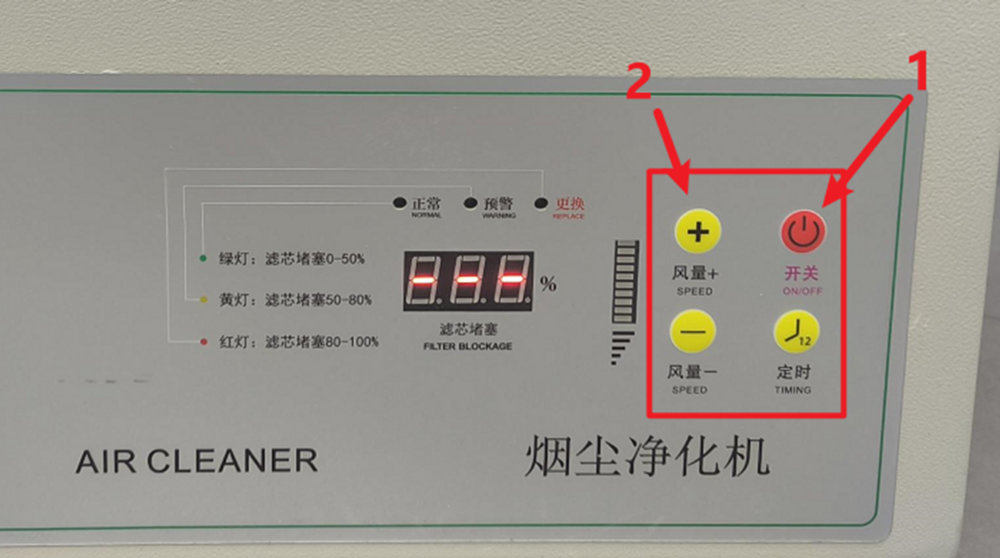

Step 3. Turn on the power of the purifier, start the purifier, and adjust the air volume to the highest.
