¶ Y-axis Guide Wheel Misalignment - X Series
This guide explains how to fix Y-axis guide wheel misalignment when the wheels slip off the rail track. The procedure includes rail base adjustment, slider reinstallation, and final squaring inspection to restore smooth and stable machine movement.
Proper rail alignment is critical to prevent vibration, binding, or uneven travel.
¶ Problem Description

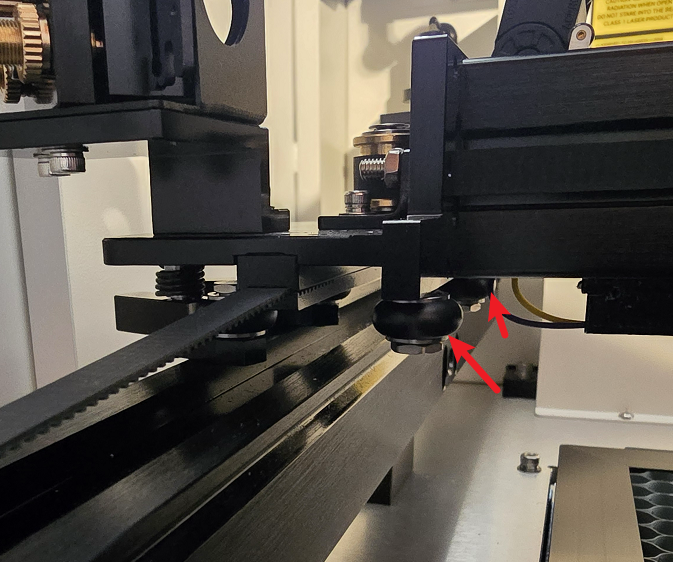

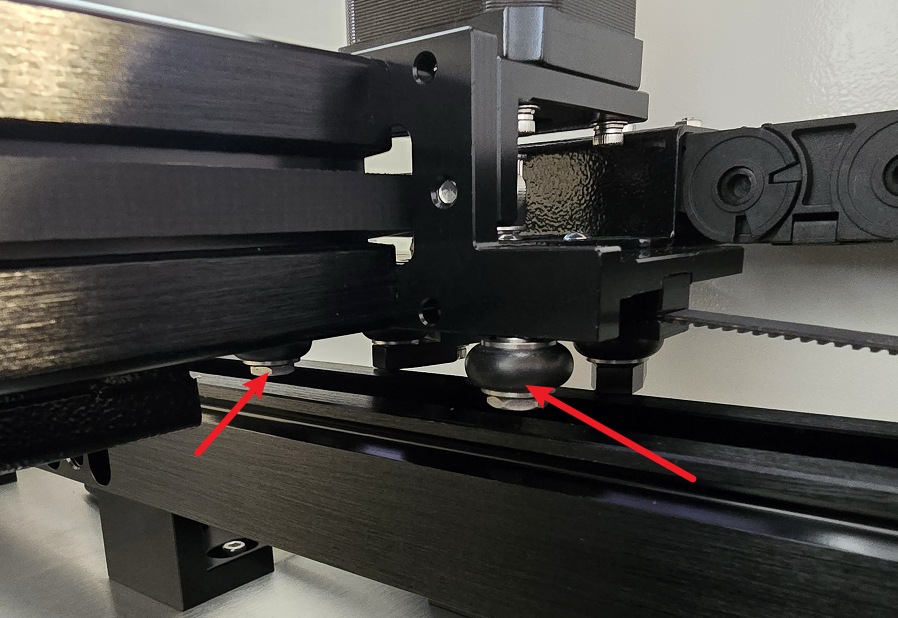

The guide wheels on the Y-axis are misaligned and have slipped off the guide rail track.
¶ Solution
¶ Step 1. Remove the Left Side Door

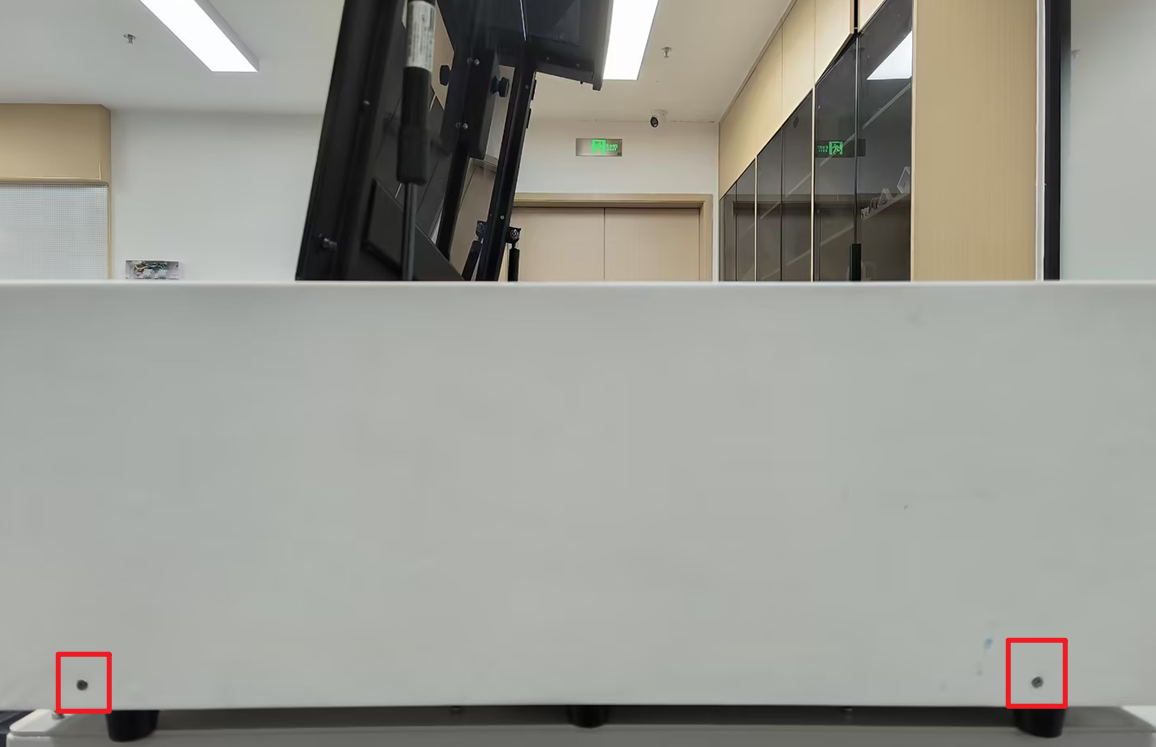

Use an M2 Allen key to remove the screws and take off the left side door of the machine.
¶ Step 2. Loosen the Rail Base

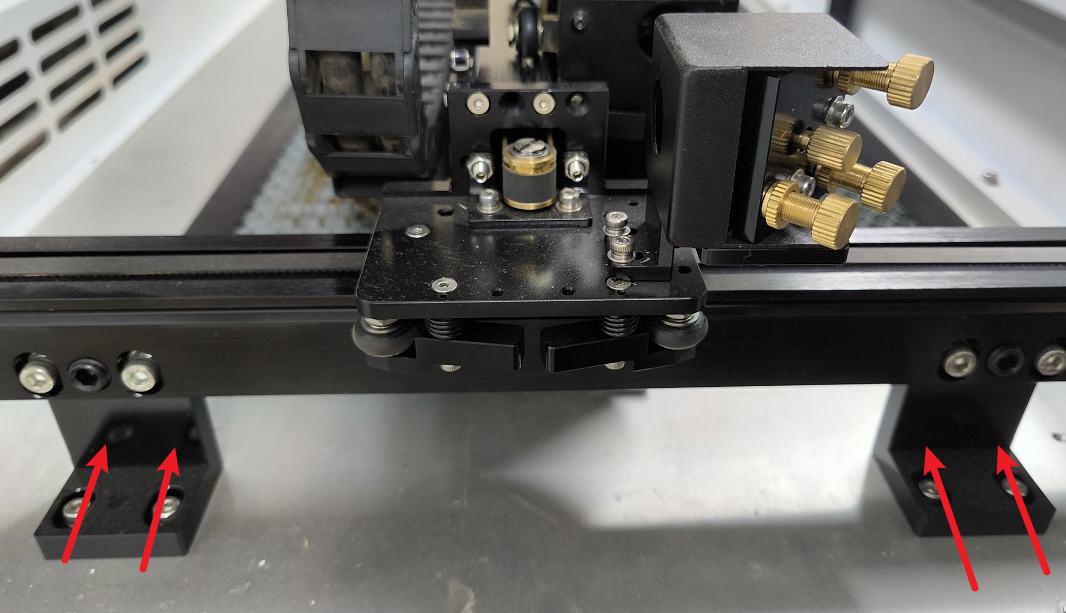

Use an M4 Allen key to loosen the screws on one side of the guide rail base. Do not remove them completely; just loosen them enough to allow for adjustment.
¶ Step 3. Shift the Rail Base Inward
Gently push the guide rail base inward. This will slightly contract the Y-axis travel space, making it easier to re-seat the wheels.
¶ Step 4. Reinstall the Slider

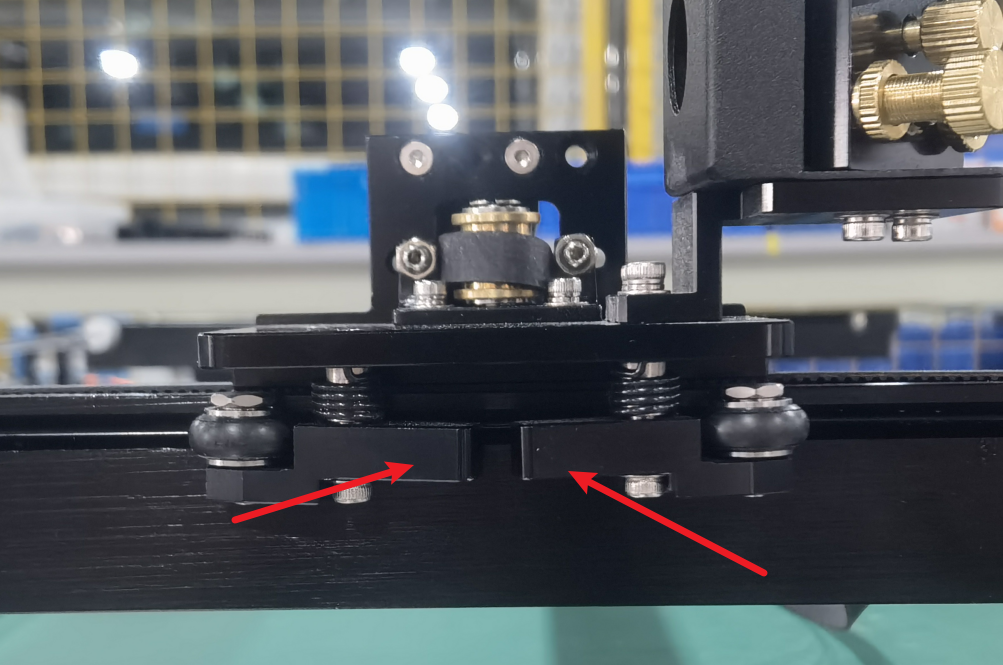

Fit the slider back into the Y-axis rail groove. Use both thumbs to simultaneously press the guide wheel spring adjustment buttons on the Y-axis slider.
Rotate your left thumb counter-clockwise and your right thumb clockwise. This causes the two inner guide wheels to expand outward (left and right), allowing you to snap the wheels securely back into the Y-axis rail groove.
¶ Step 5. Final Inspection and Calibration

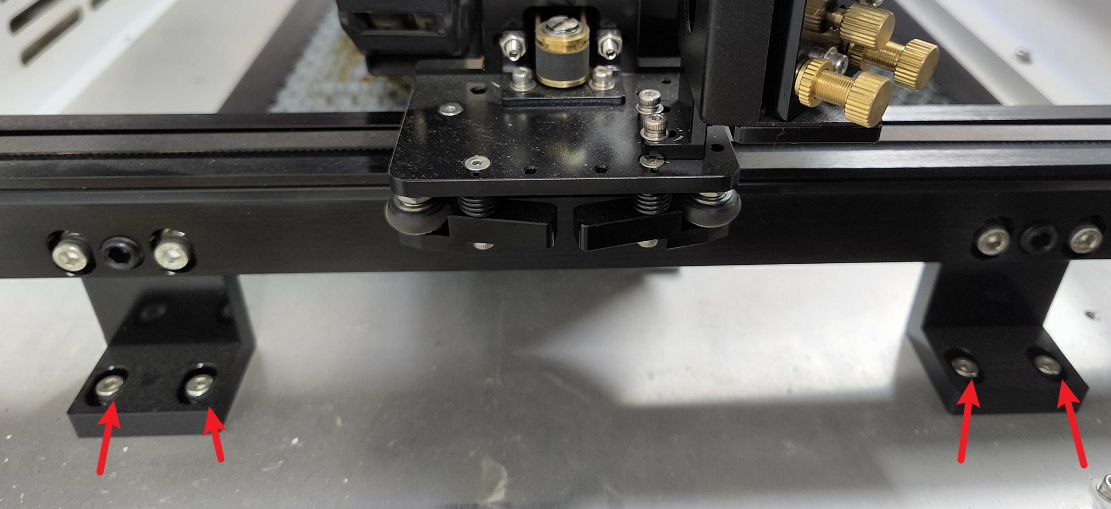

Return the guide rail to its original position and tighten the screws at the base of the Y-axis rail that were loosened in Step 2.

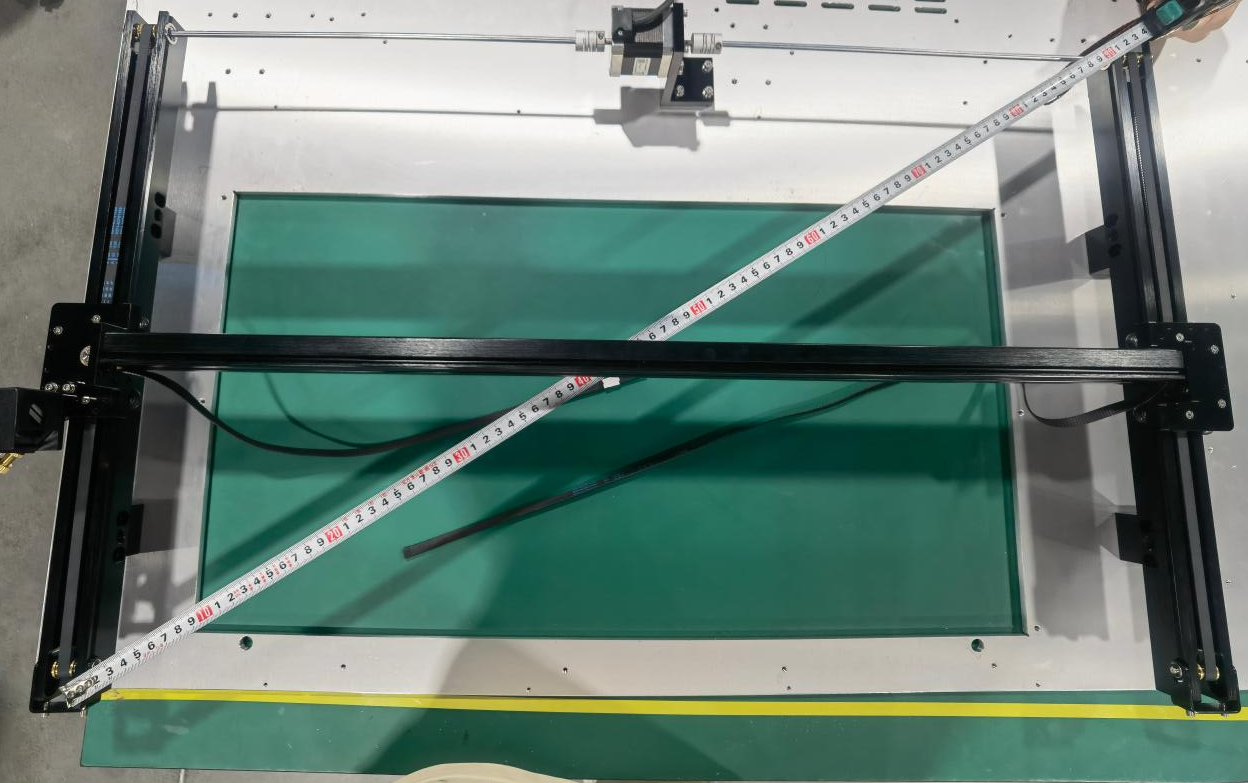

Use a tape measure to check the diagonal distance between the two Y-axis rails. Both diagonal measurements must be identical to ensure the machine is square.
If the diagonal distances are inconsistent, adjust the position of the two fixing screws on the rail base until the measurements match.
Important Reminder:
If these steps do not resolve the issue, please submit a support ticket on ZOHO: https://zohodesk.1laser.com/portal/en/newticket. A technician will then be able to conduct a more in-depth diagnosis and resolve your problem.
