¶ 1.1 Safety Information
Carefully read this entire document before installing and operating the machine.
WARNING:
Failure to read, thoroughly understand, and strictly adhere to the instructions in this operation manual may result in serious personal injury, death, property damage, fire, electric shock, machine malfunction, degraded performance, reduced machine lifespan, or severe damage to the machine!
The following symbols and notes are used to alert users to potential hazards and critical operational information. Pay close attention:
High Voltage:
There is a risk of electric shock. This device can only be maintained by professionals.
Laser Radiation:
This device has laser radiation function. Please pay attention to the danger of laser beam. Please avoid direct exposure of eyes or skin to laser during operation. Be sure to follow the safe operating procedures to prevent personal injury or machine damage.
CAUTION:
1. Use Only Approved Parts: When replacing machine components, only use the components or spare parts provided or listed in the associated parts list. The use of third-party components may lead to abnormal machine performance, increased safety risks, and may void the product warranty.
2. Follow Auxiliary machine Instructions: Auxiliary machine supplied with this device is accompanied by its own dedicated instruction manual. Installation or operation of any auxiliary machine must strictly comply with the requirements specified in its respective manual. (Contact us if you require related information).
¶ 1.2 Compatible Materials
VertiGO is used for engraving of thermos cup.
A wide variety of materials such as rubber, acrylic, coated metal, tin, special steel, anodized aluminum, cork, cardboard, glass, several plastics and wood can be processed on the laser.
Notice:
1.The engraving process must only be performed with a perfectly adjusted machine.
2.Use of the system in other areas is against the designated use. The manufacturer does not admit liability for damage to personal and/or machine resulting from such use.
3.The system must only be operated, maintained and repaired, by personnel that are familiar with the designated field of use and the dangers of the machine!
4.Non-observance of the instructions for operation, maintenance and repair described in this Operation Manual excludes any liability of the manufacturer if a defect occurs.
5.Caution when processing conductive materials (carbon fibers). Conductive dust or particles in the ambient air might damage electrical components and lead to short circuits. Bear in mind that those defects are not warranted.
¶ 1.3 Specifications
Mechanics
|
|
VertiGO |
|
Max. Speed |
800mm/s |
|
Max. Acceleration |
3G |
|
DPI |
1000 |
|
Laser Type |
38W Sealed Radio Frequency Laser Tube |
|
Z Axis Distance |
165mm / 6.50” |
|
Maximum Lifting Height |
300mm / 11.81” |
|
Maximum Machining Size |
Diameter 89~293mm / 3.5”~11.54” |
|
Net Weight |
64kg |
|
Standard Head |
2.5’’ |
|
Lens Diameter |
20mm / 0.79” |
|
Mirror Diameter |
25mm / 0.98” |
Outer Dimensions
|
|
VertiGO |
|
W x D x H |
630*550*710mm 24.8”x 21.65”x 27.95” |
Control System
|
|
VertiGO |
|
Interface Hardware |
USB: connect to PC Ethernet: connect to PC WI-FI：connect to PC |
|
Interface Software |
MakerBoost, RDWorks, LightBurn |
Electricity, Power, Breaker
|
|
VertiGO |
|
Electricity Requirement |
100-240V AC, 50 or 60Hz, Single phase Machine requires either 115v or 220V voltage(customized from factory); Support both 50Hz and 60Hz, single phase |
|
Power Consumption |
706.2W, 115V 660.5W, 220V |
Ambient Conditions
|
|
VertiGO |
|
Ambient Temperature |
+15°C to +35°C / 59°F to 95°F |
Laser Safety
|
|
VertiGO |
|
Laser Class |
Laser Class II |

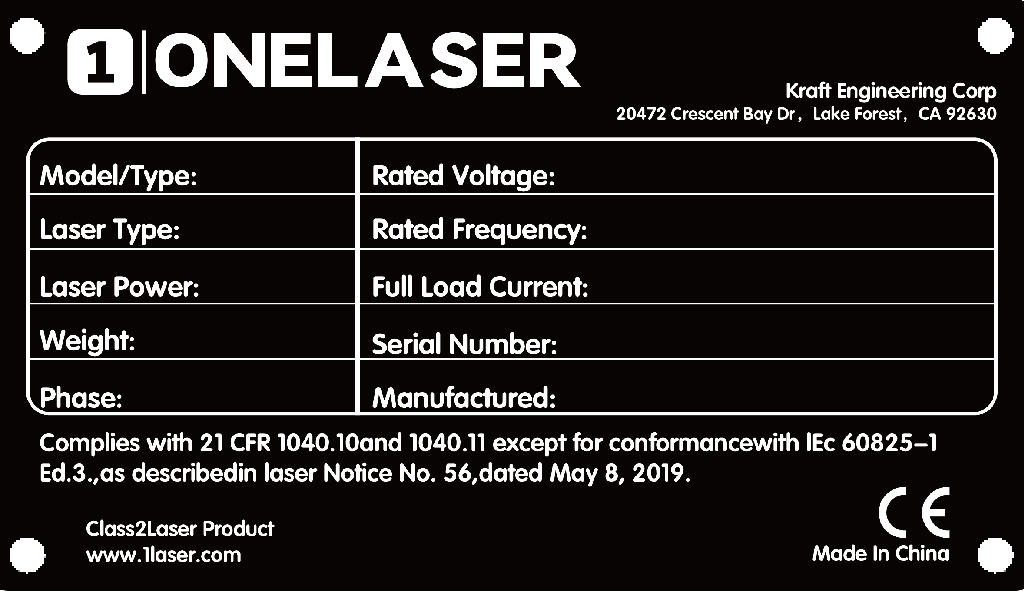

¶ 1.4 Machine Nameplate
The manufacturer's information is located on the rear of the unit (see diagram below). Retain all data plate information for future reference. You may be required to provide the serial number when contacting our support team.
