¶ X Series Manual - General Section
¶ 1.1 General Information
Please read this documentation carefully before installation and operation.
Injury, death, loss of property, fire, electric shock, malfunction, reduced performance & machine life, and critical failures can result from not reading, understanding, and following the Operation Manual!
Operation of the system is permitted only with equipment and spare parts supplied or listed in the spare parts and consumables lists. The use of 3rd Party components may void the warranty.
Auxiliary equipment must be adjusted to the base machine (contact us for further info).
The following symbols are used throughout the Operation Manual:
High Voltage: Care must be taken to prevent injury and/or death.
Laser Radiation: Pay attention to the dangers of the laser beam.
¶ 1.2 Designated
OneLaser X series is used for engraving and cutting of signs, stamps and such like.
A wide variety of materials such as rubber, acrylic, coated metal, tin, special steel, anodized aluminum, cork, cardboard, glass, leather, marble, several plastics and wood can be processed on the laser.
1. The engraving process must only be performed with a perfectly adjusted machine.
2. Use of the system in other areas is against the designated use. The manufacturer does not admit liability for damage to personal and/or equipment resulting from such use.
3. The system must only be operated, maintained and repaired, by personnel that are familiar with the designated field of use and the dangers of the machine!
4. Non-observance of the instructions for operation, maintenance and repair described in this Operation Manual excludes any liability of the manufacturer if a defect occurs.
5. Caution when processing conductive materials (carbon fibers), Conductive dust or particles in the ambient air might damage electrical components and lead to short circuits. Bear in mind that those defects are not warranted.
¶ 1.3 Disposal remarks
Do not dispose the machine with domestic waste!
Electronic devices have to be disposed according to the regional directives on electronic and electric waste disposal. In case of further questions, please ask your supplier. He might take care of proper disposal.
¶ 1.4 Technical Data / Device Specification
Mechanics
|
System |
XT |
XRF |
|
Working Area |
600*300mm/23.6x11.8'' |
|
|
Table Size |
650*350mm/25.6x13.8'' |
|
|
Z Axis Height |
55mm/2.2'',motorized laser head |
|
|
Max Work Height |
210mm/8.3'' ,with riser base |
|
|
Max Speed |
800mm/s |
1000mm/s |
|
Motor |
Stepper motor |
|
|
Working Piece Table |
Honey comb table |
|
|
Max Table Load |
20kg |
|
|
Net Weight |
52kg |
56kg |
|
Standard Head |
2'' |
2.5'' |
|
Lens Diameter |
20mm |
|
|
Mirror Diameter |
25mm |
|
|
Beam Comb. Dia |
20mm |
25mm |
Dimensions (W x D x H)
|
|
XT/ XRF |
|
|
Machine |
1098x725x268mm/43.2x28.5x10.5'' |
|
|
Machine with riser base |
1098x725x441mm/43.2x28.5x17.4'' |
|
Max Part Size (W x L x H)
|
|
XT/ XRF |
|
With rise base |
600x∞x160mm/23.6x∞x6.3'' |
Features
Standard:
100% faster motor system, 100% smoother guide Rail, , Upper lower vent, Open flap protection, Heat alarm detector, Newly-designed focus lens and mirror holder, New housing design, Drawer for collecting small working pieces, Visible Red Dot Pointer, New Auto Focus, Smart board, Honey Comb Table, High quality power cable, Alarm lamp, Emergency Stop , 3D Engraving/Cutting, Breaker, Ground wiring, Rotary plug, Exhaust system.
Optional:
Rotary Attachment, XT Series has 2.5'' lens for optional, XRF has 2'' lens as optional.
| Control System | |
| Laser power | Adjustable from 1 - 100% (typically 5-100%) |
| Interface Hardware | USB: connect to PC |
| Interface Software | LightBurn |
| Operating Modes | Optimized raster, vector, and combined mode |
| Buffer Memory | 128MB standard |
| Laser Equipment | |
| Laser Type | Sealed Glass Laser Tube |
| Sealed Radio Frequency Laser Tube | |
| Standard Laser Power | 38w,55w |
| Wavelength | 10.6µm |
| Red dot pointer: | Laser Power< 1mW |
| Wavelength of Red dot pointer: | 630nm – 680nm |
| Cooling System | |
| Machine Cooling System: | Air-Cooled |
| Tube Cooling System: | Water/Air-Cooled |
Electricity, Power, Breaker
|
|
XT |
XRF |
|
Electricity Requirement |
100-240V AC，50 or 60Hz, Single phase Machine requires either 115v or 220V voltage(customized from factory); Support both 50Hz and 60Hz, single phase |
|
|
Power consumption |
383.5W,115V 391.8W,230V |
669.9W,115V 648.5W,230V |
| Ambient Conditions | |
| Ambient temperature | +15°C to +35°C / 59°F to 95°F |
| Humidity | 40% to max. 70%, not condensing |
| Laser Safety | |
| Laser Class | Laser Class 2 |
¶ 1.5 Manufacturer's Label

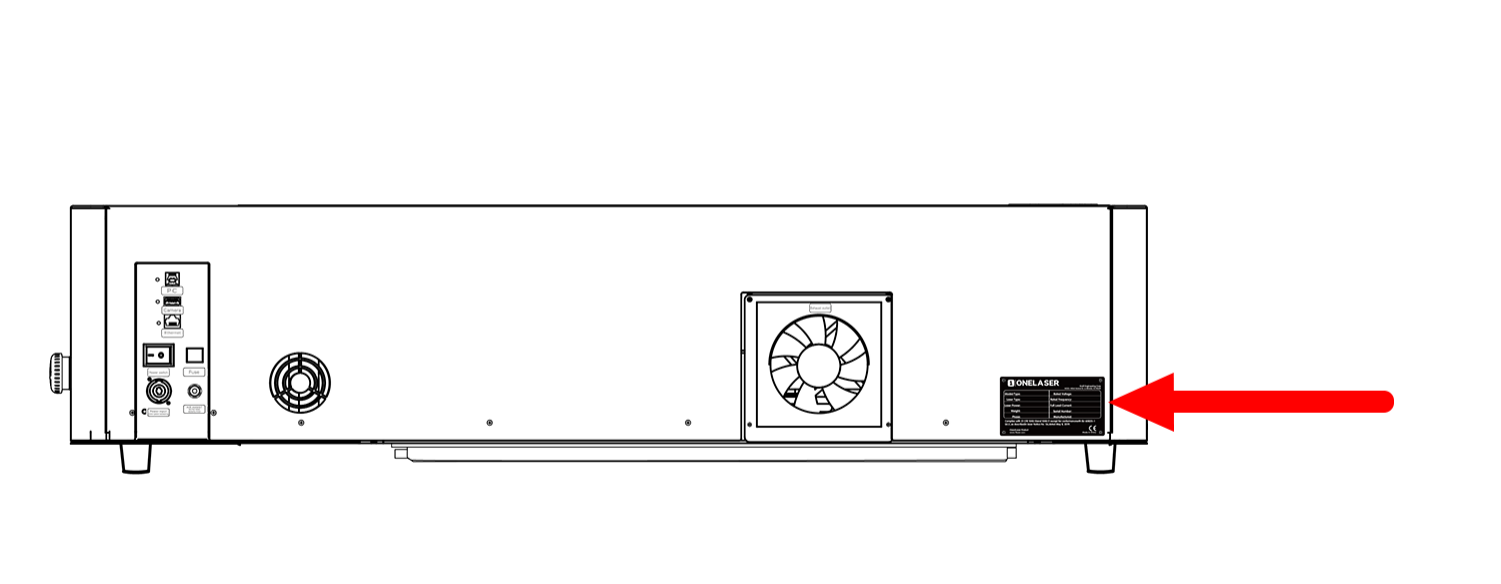

The manufacturer's label is located on the back of the device (see Figure below).
It is recommended to record all of the data so that you always have this handy. You will need to supply your Serial Number to our Support Team on occasion.
