¶ X Series Maintenance
¶ 5.1 Cleaning the Laser Machine
Caution – use of controls or adjustments or performance of procedures other than those specified here in may result in hazardous laser radiation exposure.
Before starting cleaning and maintenance work always switch off the device and unplug the mains plug.
Always keep the system clean, as flammable parts in the working area or exhaust area rise the fire hazard.
You should check at least once a day, whether dust has accumulated in the engraving system. In case of soiling the machine must be cleaned. The cleaning interval strongly depends on the material that is being processed and the operating time of the device. Please bear in mind that only a clean machine guarantees optimal performance and reduces the service costs.
General Cleaning Notes:
1.Make sure, that the device is switched off and unplugged. Open the protective cover.
2.Move the working table into a position in which it is easiest for you to clean the surface with a window cleaning agent and paper towels.
3.Thoroughly remove all loose dirt particles and deposits in the interior of the machine.
4.Clean the cover of the laser tube.
5.You can clean the viewing window with a cotton cloth. Do not use paper towels as they could scratch the acrylic.
6.The laser nozzle should be cleaned regularly to prevent oil and grease buildup from obstructing the laser beam. It is recommended to clean the laser aperture every three days.
¶ 5.2 Cleaning the Optical Parts
The lens has a durable multi-coating and won’t be damaged by correct and careful cleaning. You should inspect the focus lens and the mirrors and the beam combiner according the maintenance plan. If you discover a veil of haze or dirt, you must clean them.
It is suggested to clean the mirrors/lens before work every day in order to run the machine at max efficiency.
Please turn off the power of laser machine before cleaning the optical parts.
1. The cleaner and cotton swabs are in the tool box that came with the machine.
2. The lens must be cleaned carefully with a clean cotton swab to avoid scratching the surface of the lens.
3. Do not touch the lens with your hands after wiping.
4. Never use a cleaning swab twice.
Follow the instructions below for the cleaning of optical parts:
¶ 5.2.1 Cleaning the Focus Lens

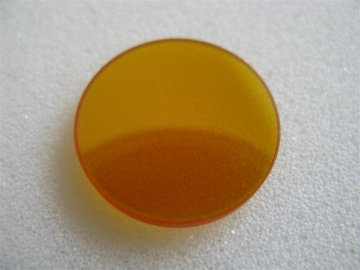

1.Move the working head into the center of the working surface.

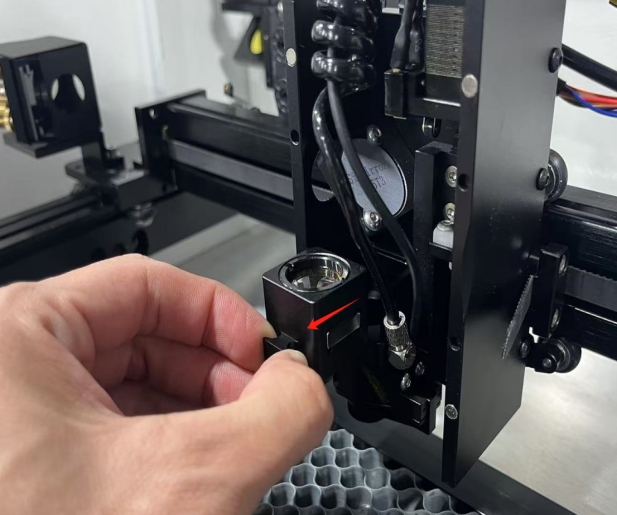

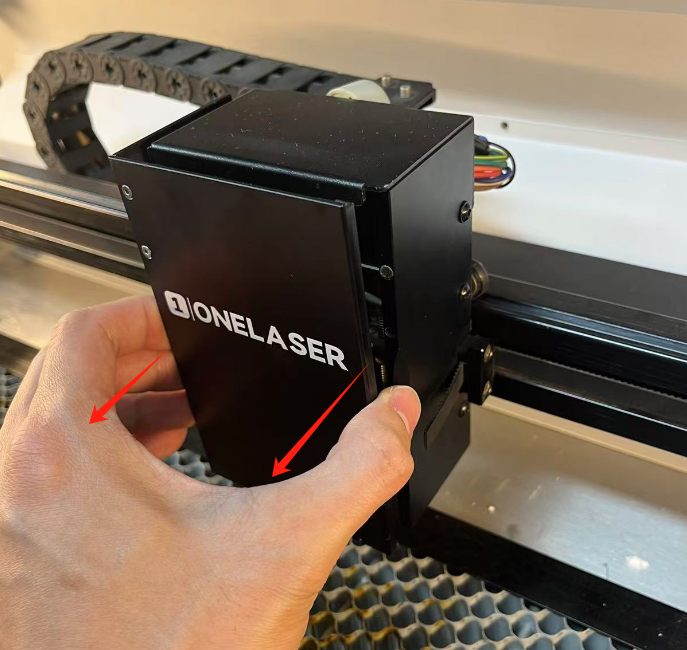

2.Take the lens out.
3.Remove the coarse dust as good as possible by blowing air onto the lens surface.
4.Clean the lens with the cleaner and swabs.
5.Finally, dry this side of the lens with dry cleaning swabs and repeat the cleaning process on the other side of the lens. Never use a cleaning swabs twice. Dust accumulated in the cleaning swabs could scratch the lens surface.
6.Examine the lens. If it is still soiled, repeat the cleaning process until the lens is clean.
7.Install the lens back.
¶ 5.2.2 Cleaning the Mirrors

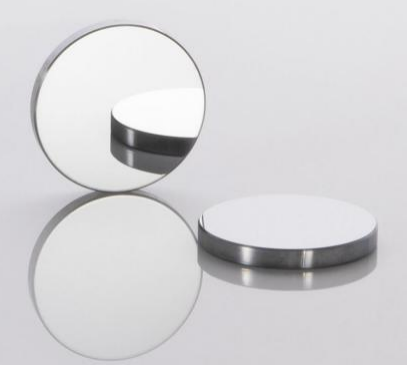

There are three mirrors in the operating area of the laser, which may have to be cleaned if they are soiled. To clean the reflector, follow the instructions below.
1.Remove the coarse dust as good as possible by blowing air onto the mirror surface.
2.Clean the lens with the cleaner and swabs.
3.Finally, dry this side of the mirror with dry cleaning swabs and repeat the cleaning process on the other side of the mirror. Never use a cleaning swabs twice. Dust accumulated in the cleaning swabs could scratch the mirror surface.
4.Examine the mirror. If it is still soiled, repeat the cleaning process until the lens is clean.

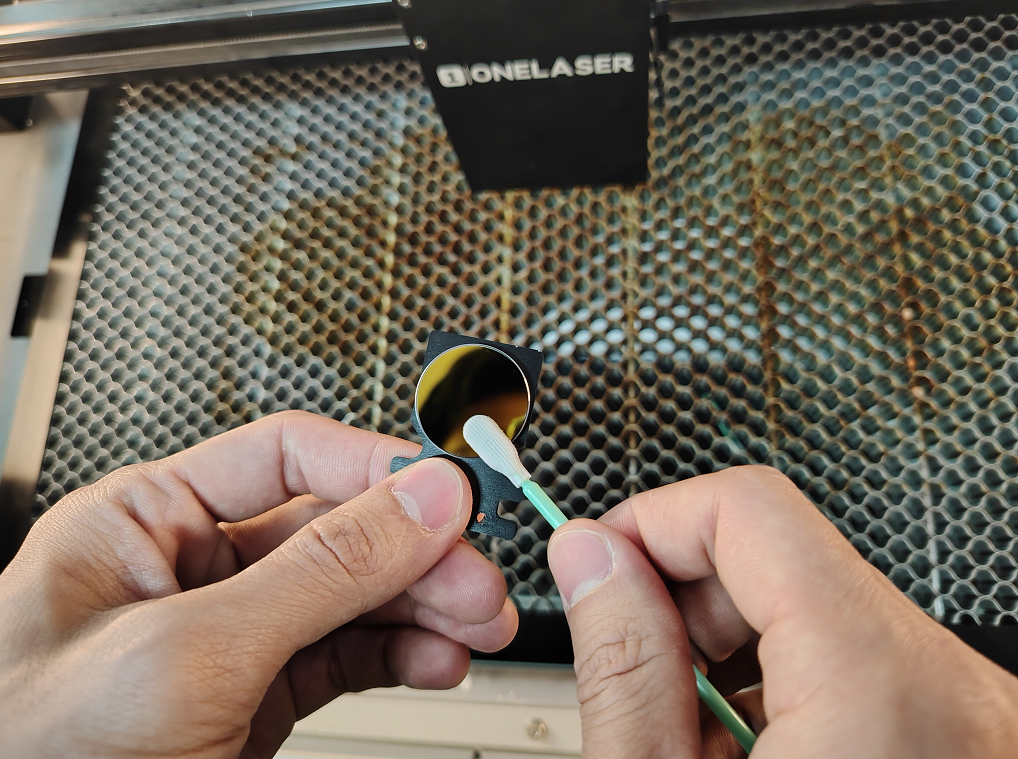

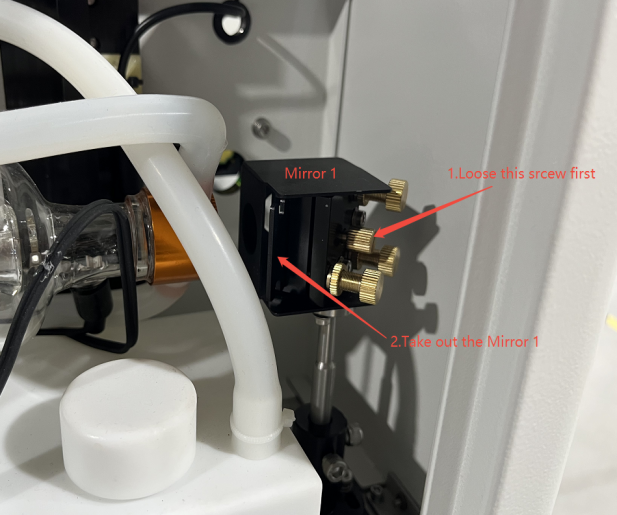

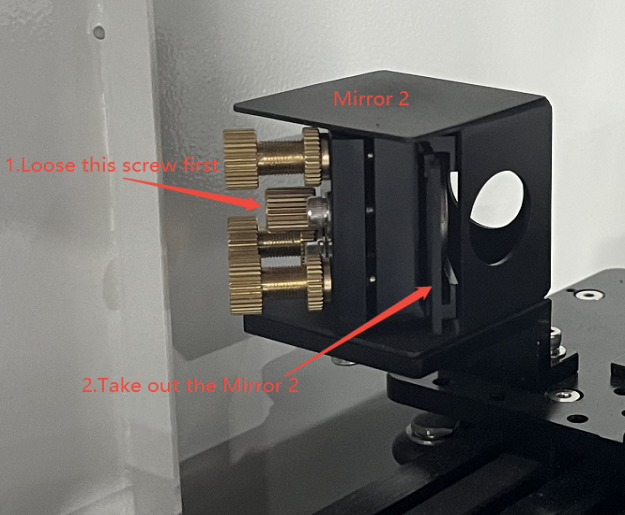

Mirror 1:
Mirror 2:

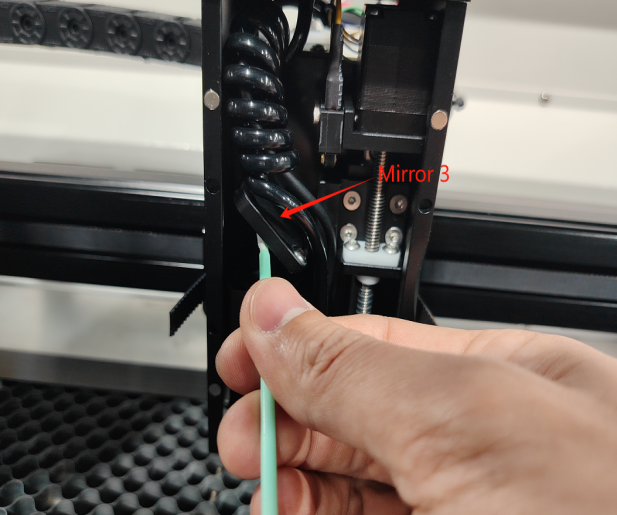

Mirror 3:
¶ 5.2.3 Cleaning Laser Combiner

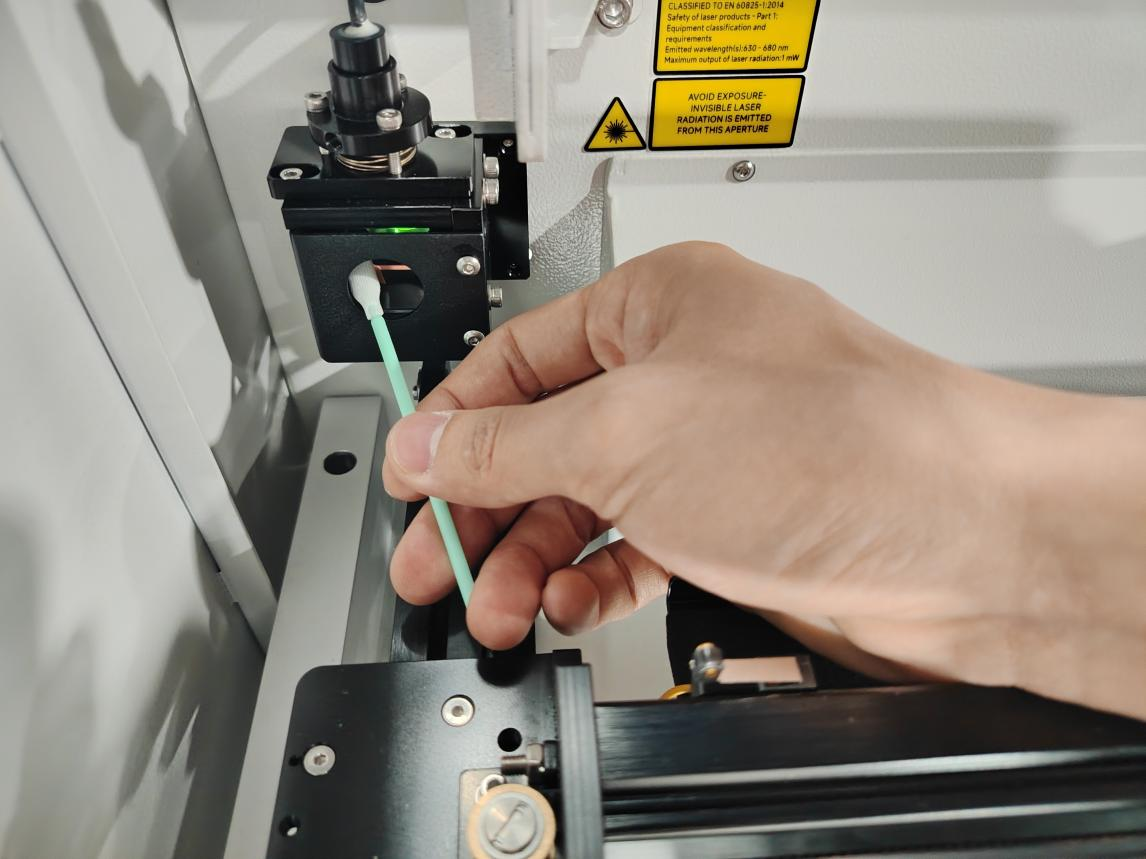

1.The laser combiner is installed on the left side of the first mirror.
2.Remove the coarse dust as good as possible by blowing air onto the combiner surface.
3.Clean the lens with the cleaner and swabs.
4.Finally, dry this side of the laser combiner with dry cleaning swabs and repeat the cleaning process on the other side of the lens. Never use a cleaning swab twice. Dust accumulated in the cleaning swabs could scratch the combiner surface.
5.Examine the laser combiner. If it is still soiled, repeat the cleaning process until it is clean.
¶ 5.3 Check the Beam Path

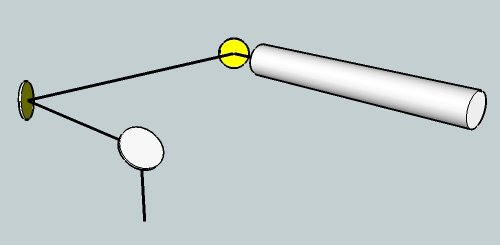

After being used for a long time, the beam path might be deflective. This will reduce the efficient of the laser beam or even cause no laser beam. At this moment, you will need to re-adjust the beam path again.
¶ 5.4 Hardware Maintenance
Auto Sensor

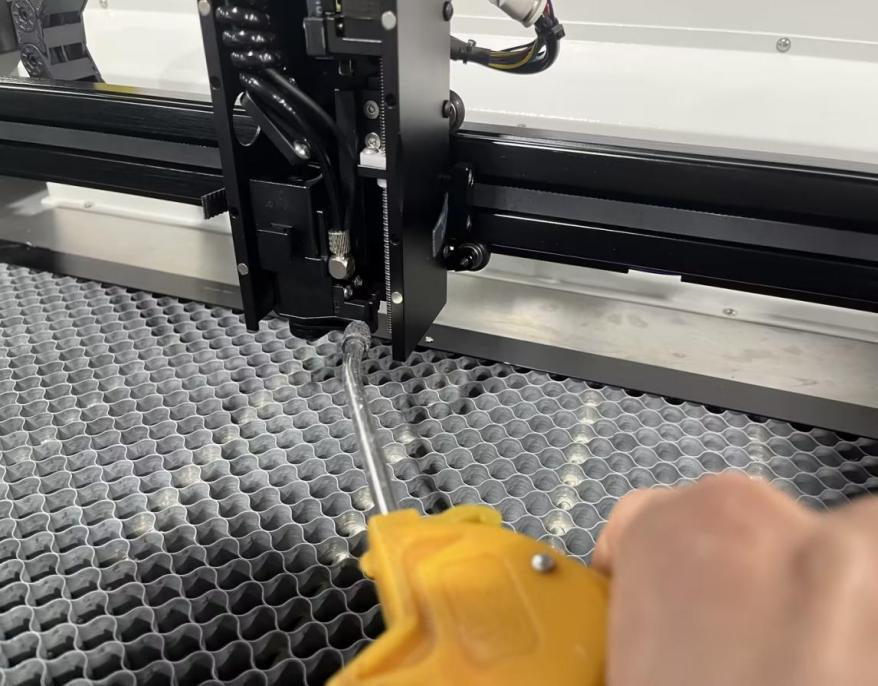

① First use an air gun to blow away dust and debris from the surface.
② Use a dry cloth to wipe it clean again.
Rail,Belt,Gear and Roller
Blow away large dust particles from these parts using the air blow gun.
Use a dry cloth to remove dirt from the rails,belts,gear and roller. Then, use an alcohol-dampened cloth to wipe them clean.
Screw Rod

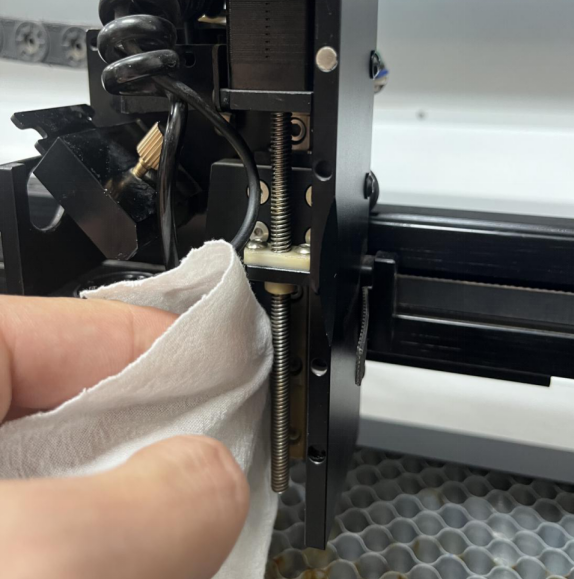

① Wipe the screw rod with a dry cloth to remove dirt.

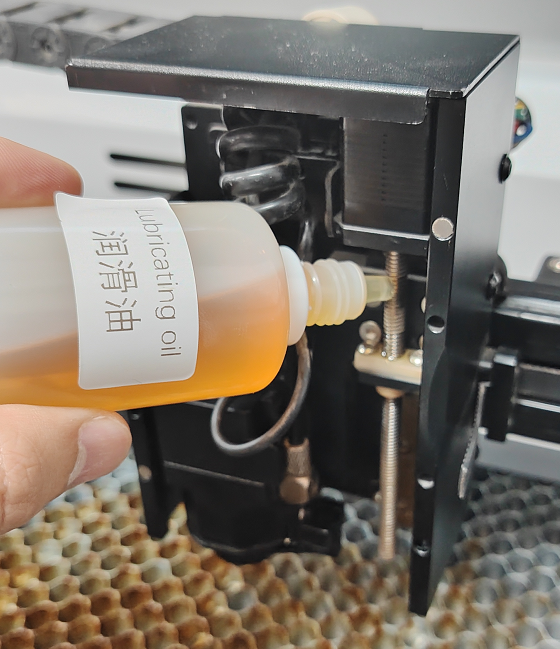

② Add lubricating oil to the top of the screw rod then move the laser head to distribute the lubricant evenly. Alternatively, a small amount of lubricant can be applied with a brush and spread evenly over the surface of the screw rod.
Note: Do not use too much lubricant, as this can attract dust and dirt.
Collection Drawer

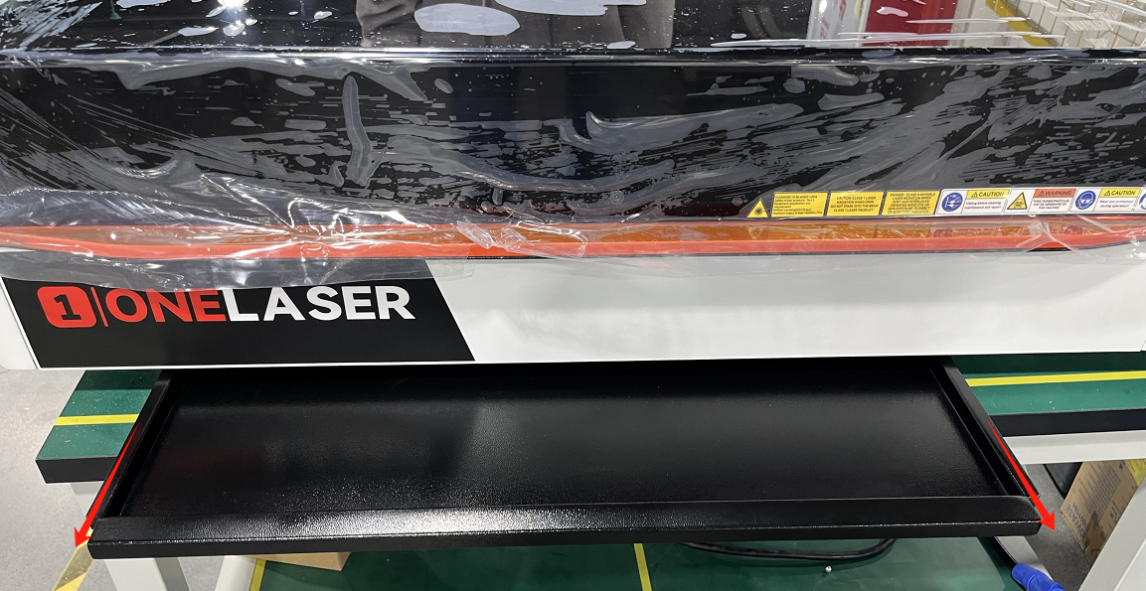

Remove the drawer and empty its contents.
Laser Head Nozzle

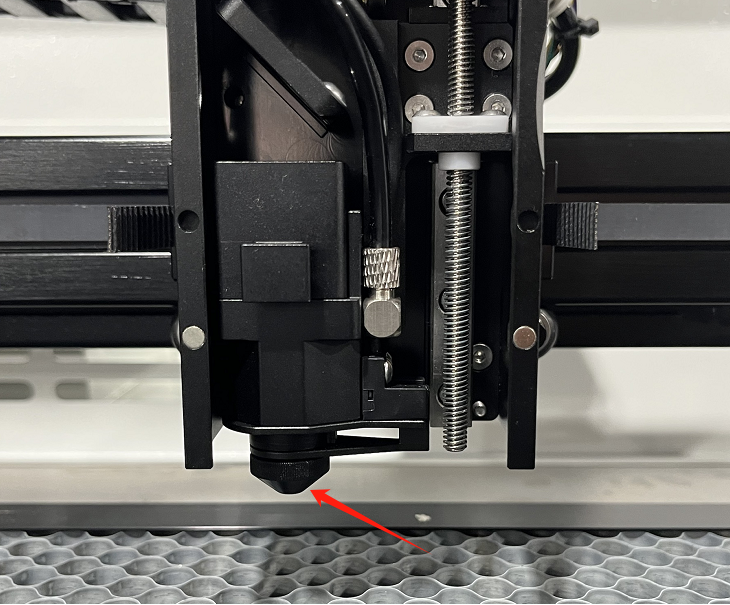

① Turn the laser head nozzle counterclockwise to unscrew it.

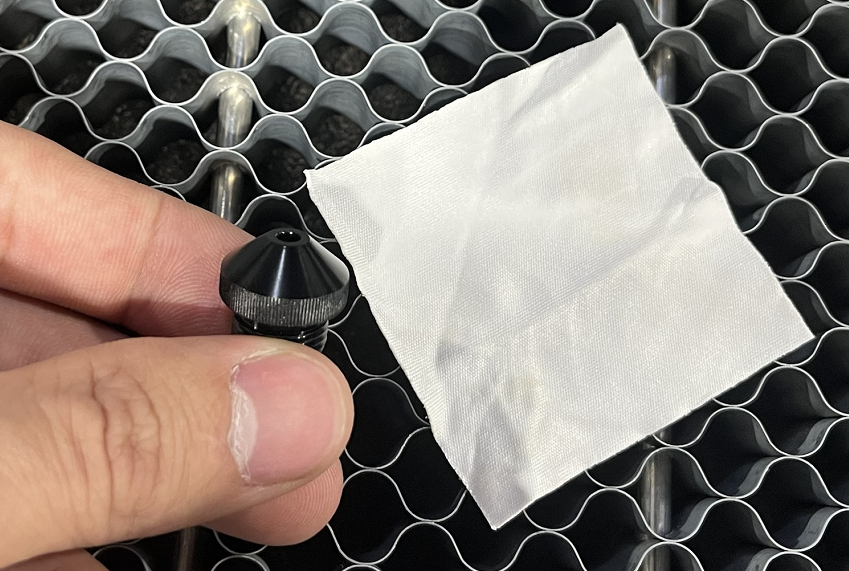

② Use a clean cloth to wipe the nozzle.
Air Pipe Screw
Note: The screws that fix the air pipe have been adjusted to the best state before leaving the factory. Do not tighten them at will to avoid cutting off the airflow. If you find that there is no airflow during equipment processing, consider adjusting the screws.

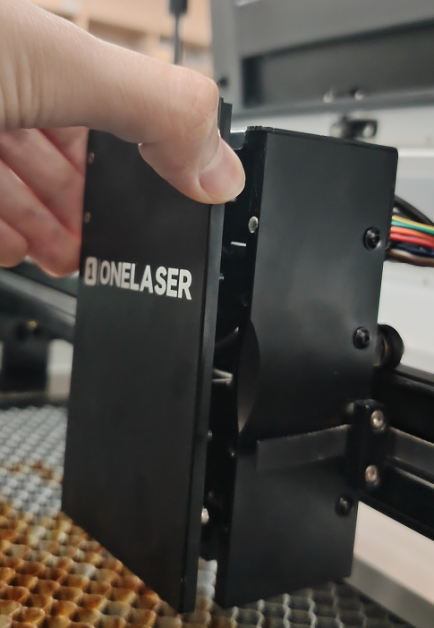

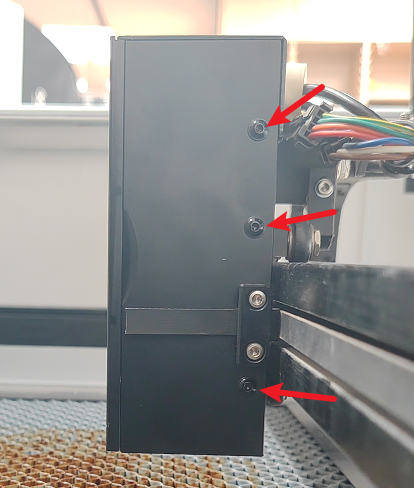

① Removing the laser head cover.Need to remove the laser head bracket front cover and right cover.

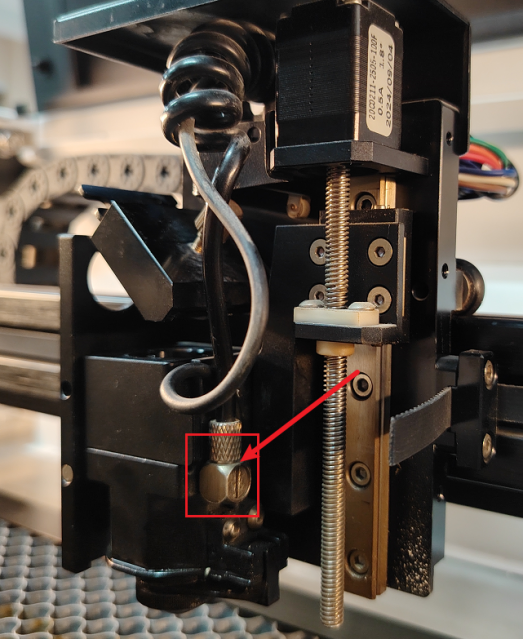

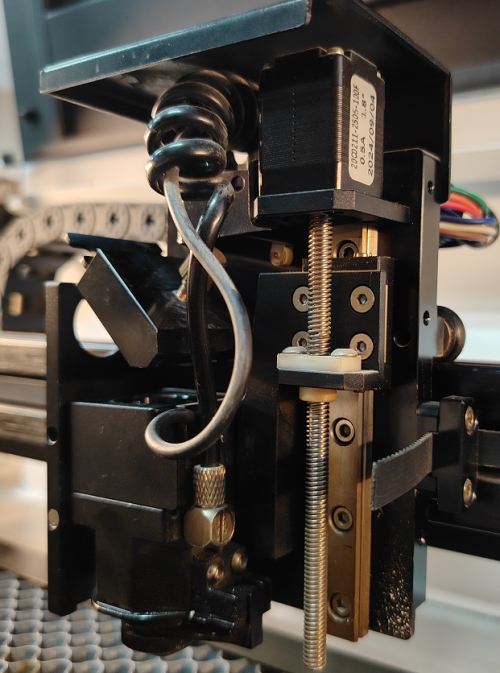

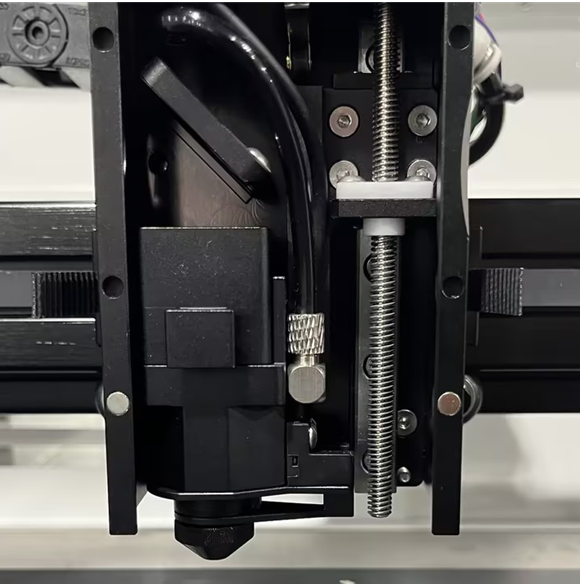

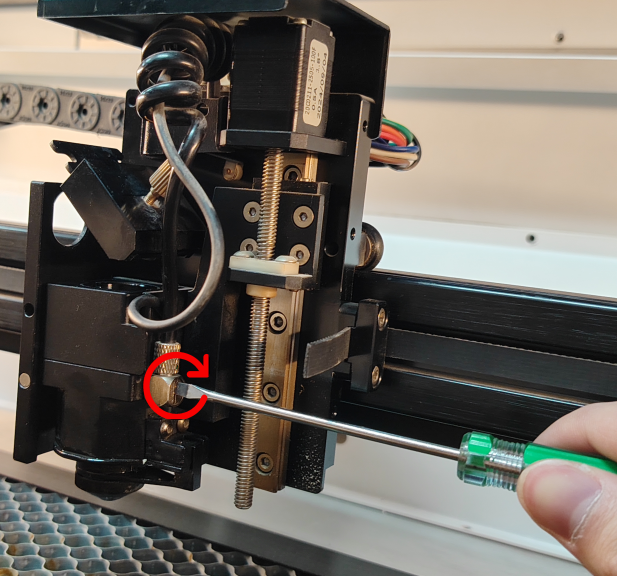

② Adjust the screw to fix the air pipe. Find the adjustment screw shown in the figure below.
③ Use a flat-blade screwdriver to adjust, turn clockwise to tighten and counterclockwise to loosen.
Note: If the screw is too loose, it may fall off; if it is too tight, it may cut off the airflow.Please adjust it to the appropriate degree.

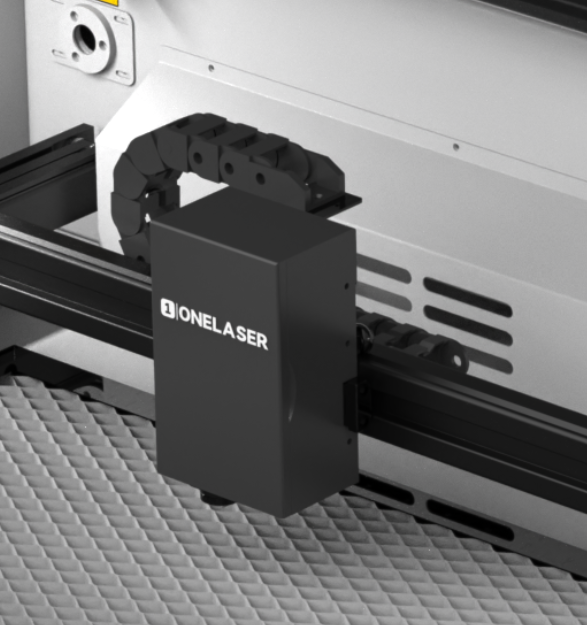

④ After the adjustment is completed, please restore the laser head cover
¶ 5.5 Other parts Maintenance
Cooling Fan

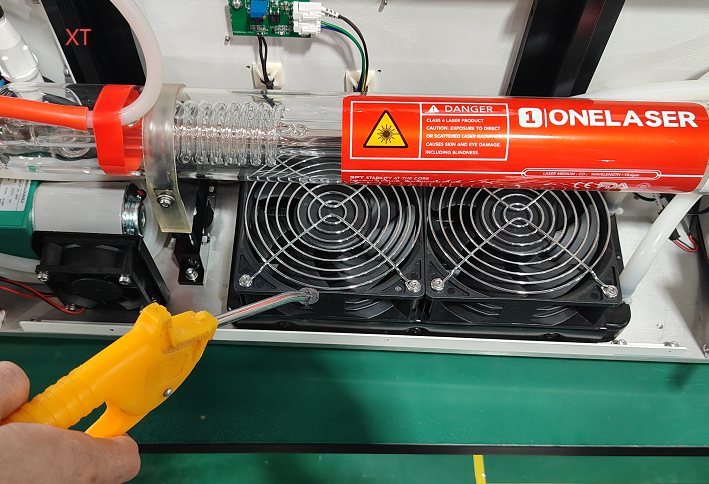

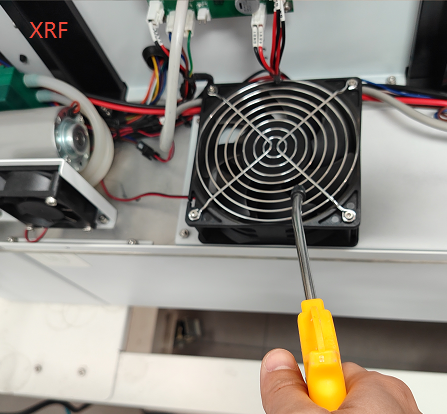

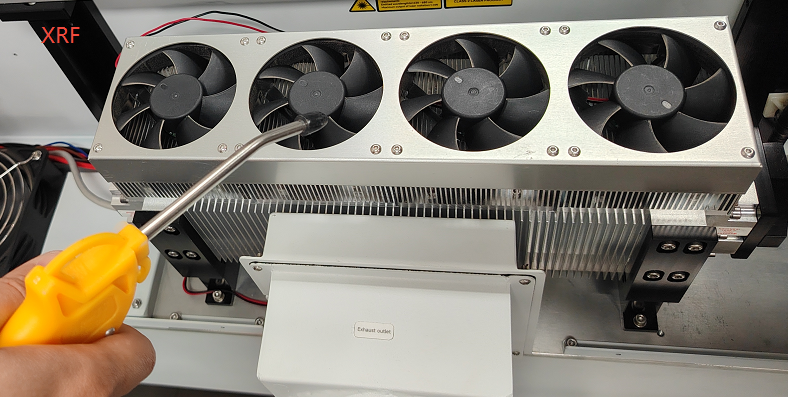

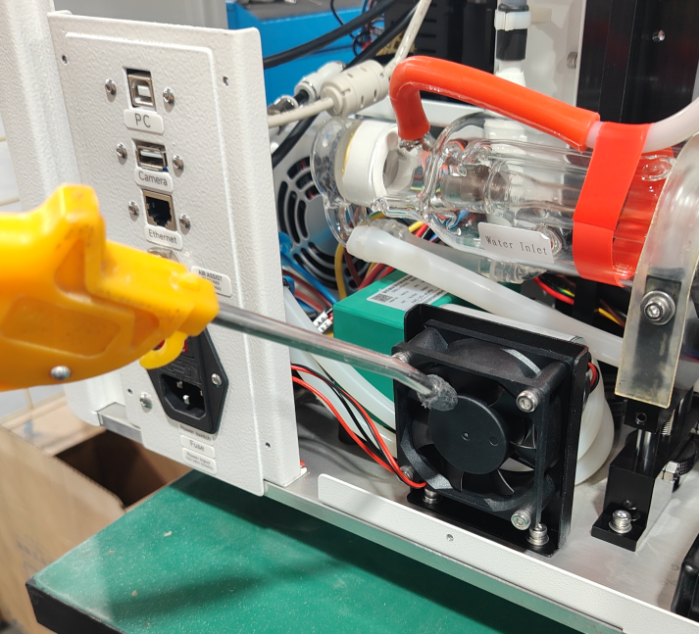

Blow away the dust particles from the cooling fan by using the air gun.
Exhaust Fan

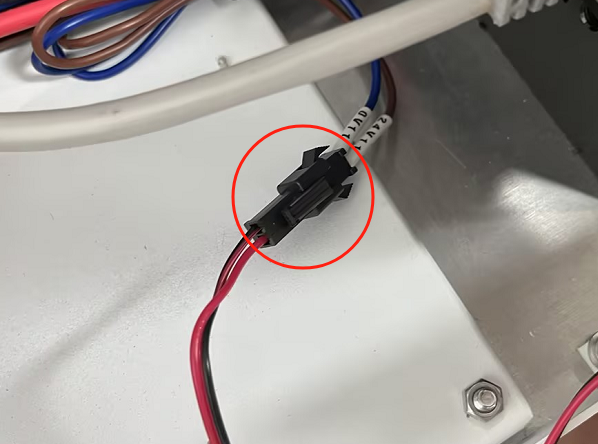

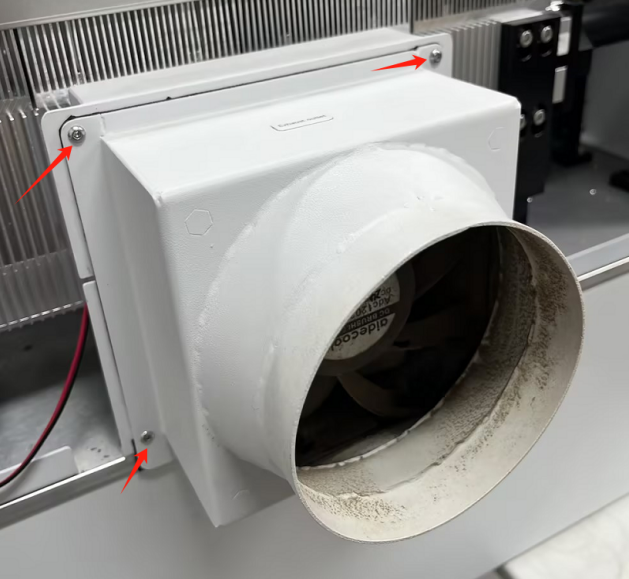

① Remove the screws that secure the exhaust fan, and then disconnect the power supply to the exhaust fan.

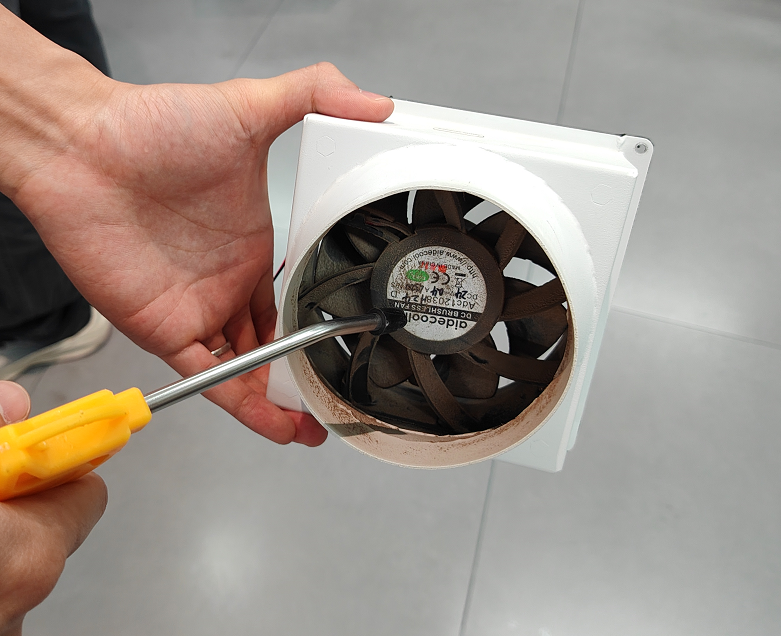

② Use an air gun to blow away the dust on the exhaust fan blades.
Chiller (XT Model)

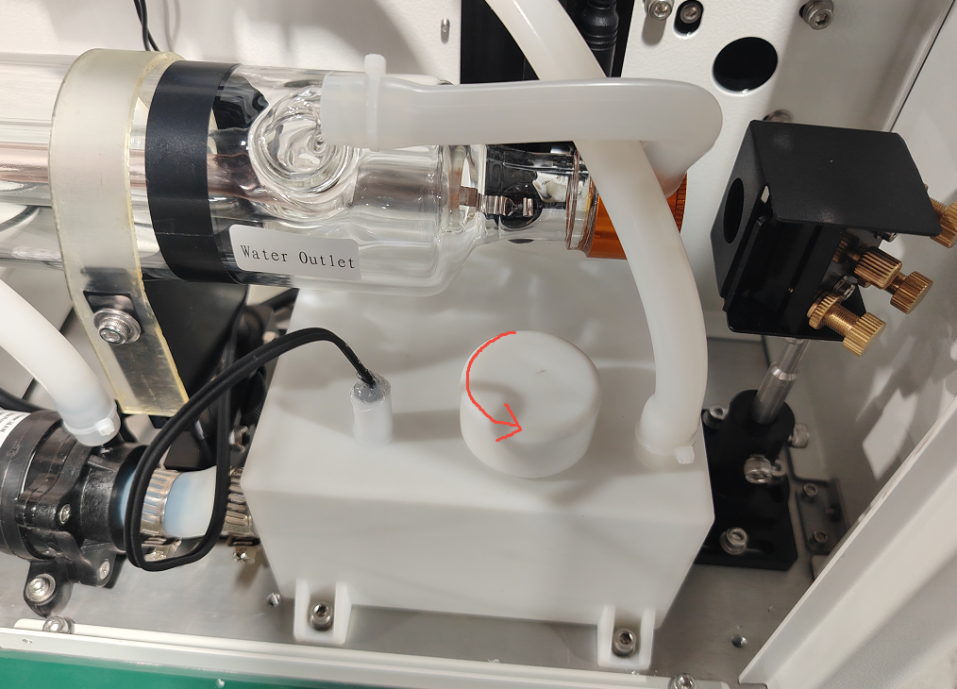

① Turn the chiller cover counterclockwise to open it.
② Use a water pump to drain the water from the chiller.
③ Refill with purified water.
Note: Please use purified water.
Dust Filter Cotton

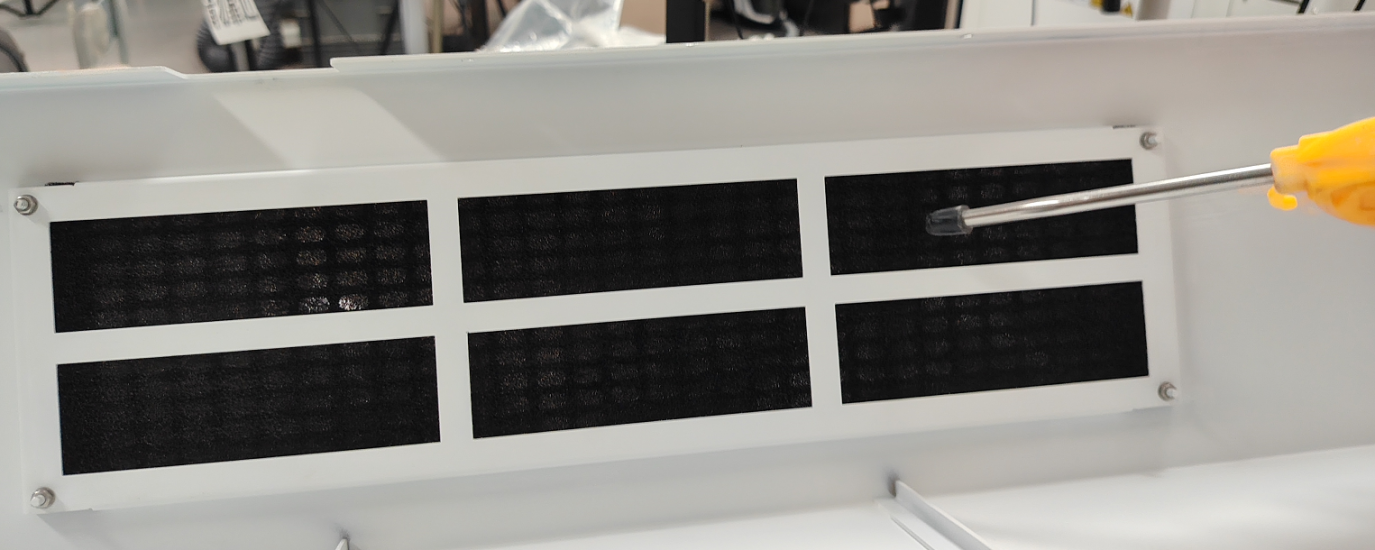

Use an air gun to clean the dust filter cotton on the rear cover.
¶ 5.6 Maintenance Plan
Please strictly follow the maintenance instructions in this manual to maintain the equipment. Failure to adhere to these instructions or using incorrect maintenance methods may result in equipment damage, affecting its performance and potentially voiding the warranty.
|
DAILY |
WEEKLY |
3 MONTHS |
6 MONTHS |
12 MONTHS |
|
Lens |
Mirror 2 and 3 |
Mirror 1 |
Belts |
Overall Machine |
|
Auto Sensor |
Work Table |
Exhaust Fan |
Bearing and Rails |
|
|
Laser Head Nozzle |
Cooling Fan |
Chiller |
Interior Work Space |
|
|
|
|
Vent Slots(back side of the machine) |
|
|
